Track Master frame with Drum Brake CR forks

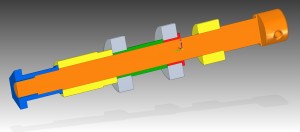

Here’s a cut away assembly diagram I did for customer after making a new front wheel adapter kit for his flat tracker bike with later model CR forks.

Modified front axle with new 12×1.5 thread machined on the end to suit to CR axle nut, new spacers (yellow), new hub sleeves/spacers (green & red)for a drum brake front end.
