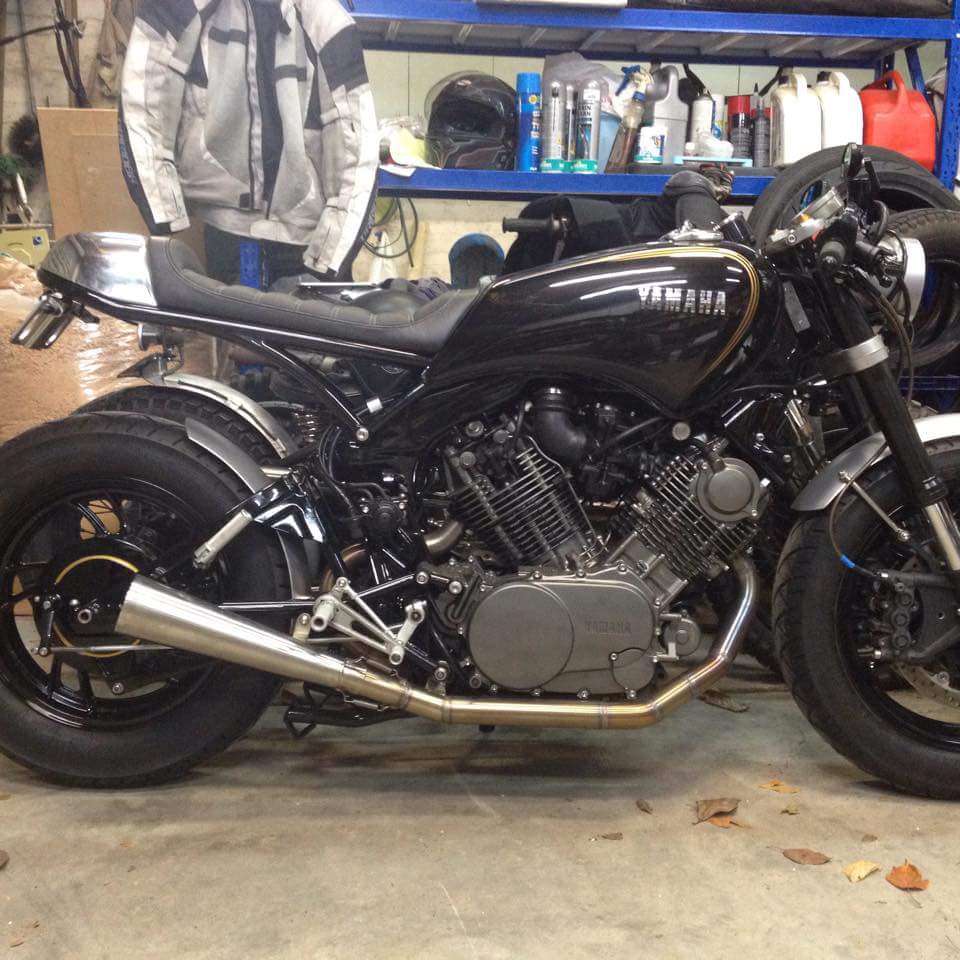

CNC billet rear cowl from 6061 T651 stock.
By far one of the most difficult projects to date. This was machined from one solid 18.8kg 250mm x 290mm x 130mm stock. It had to be machined from 3x different surfaces to achieve this finished product.

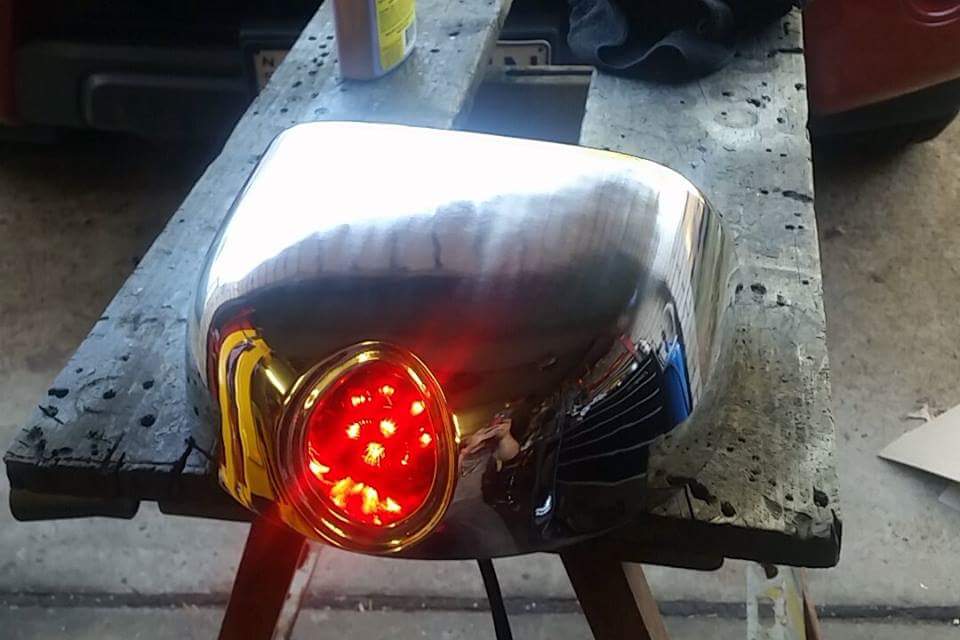

1st was the tail light section.
2nd was the underside where the battery is located.
3rd was the top section using extra long Garrtool carbides to get to the lower edge.
A special base plate was needed to hold the job in the cnc, 14 hrs of cycle time later plus set up and we have the finished article…and its magnificent!
